Regulators

1. Type B
2.  Brass
3. Stainless Steel
4. New

• compatible with 34 l, 60 l, 112 l ALLCAN / C10 Gewinde
• pressure gauge
• fixed flowrate: 0,3 l/min, 0,5 l/min, 1,0 l/min,1,5 l/min, 2,0 l/min, 2,5 l/min, 3,0 l/min

DATENBLATT / AIG-100

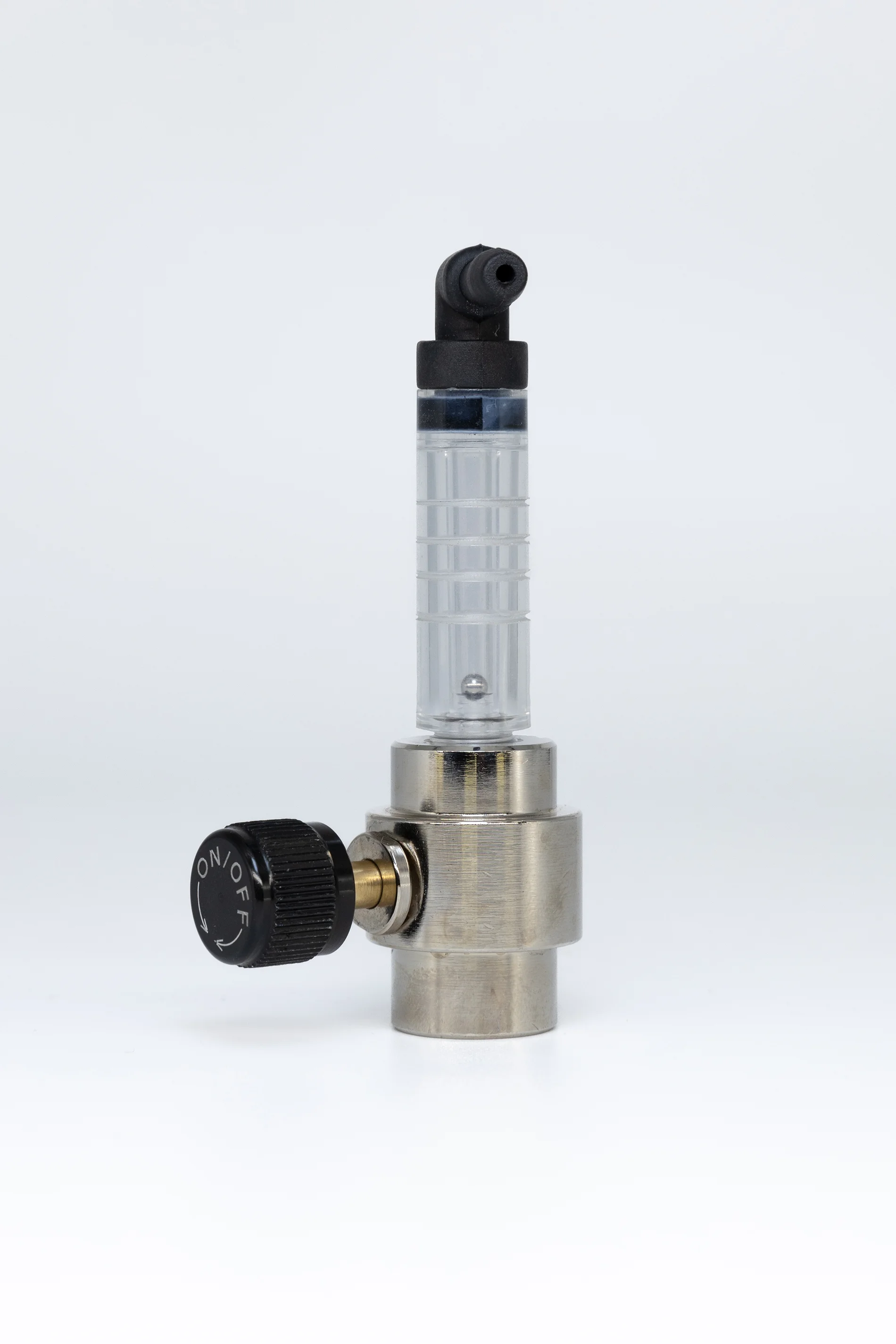

1. Type A
2. Brass
3. New

• TYP A - compatible with 12 l ALLCAN
• flowrate meter
• nickel-plated brass

DATENBLATT / AIG-101

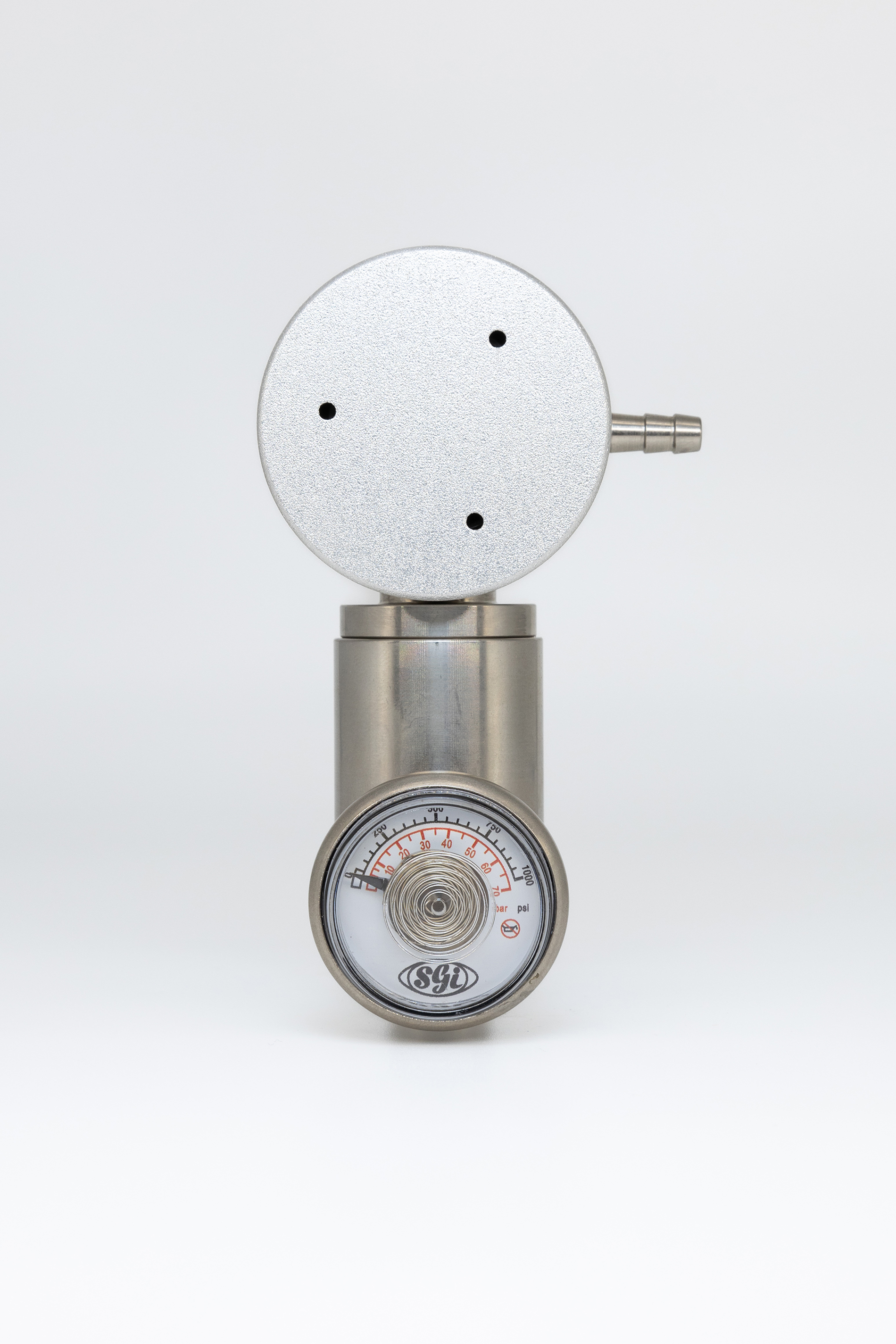

1. Type B
2. Brass
3. Stainless Steel
4. New

• compatible with 34 l, 60 l, 112 l ALLCAN / C10 thread
• pressure gauge

DATENBLATT / AIG-102

1. Type B
2. Brass
3. Stainless Steel
4. New

• compatible with 34 l, 60 l, 112 l ALLCAN / C10 thread
• pressure gauge
• adjustable from 0,5 l/min - 5,0 l/min in 0,5er steps

DATENBLATT / AIG-104

1. Type B
2. Type A
3. Brass
4. New

The AIG-105 sampling regulator or pressure reducer is optimally designed for our test gas cylinders and is freely adjustable, allowing you to variably adjust the flow rate of your test gas – from 0.5 l/min to 1.5 l/min, just as you need it. The AIG-105 is available in two versions: Type A and Type B. Type A has a 1/6-inch thread and fits our 12 l ALLCAN test gas cylinders. Type B, with its 1/4-inch thread, is suitable for the other test gas cylinder sizes of 34 l, 60 l, and 112 l. In addition to a pressure gauge, the test gas sampling regulator features an acrylic flow meter that allows you to monitor the flow. Both sampling regulator types are made of brass and are suitable for non-reactive gases. The AIG-105 can also be used with hydrogen sulfide or sulfur dioxide test gas.

However, if you require a pressure regulator that will be used in contact with reactive or corrosive gases such as nitrogen dioxide (NO2), hydrogen chloride (HCL), ammonia (NH3), phosphine (PH3), silane (SiH4), or hydrogen cyanide (HCN), we recommend a stainless steel one, such as the AIG-100 with a fixed flow rate or the AIG-104, which can be adjusted in 0.5-liter increments.

All important data at a glance

• Compatible with 12 l, 34 l, 60 l, and 112 l ALLCANs / Version A for 12 l, Version B for 34 l - 112 l
• Pressure indicator for monitoring the fill level
• Adjustable from 0.5 l/min - 1.5 l/min
• Available only in brass, but still suitable for H2S and SO2

DATENBLATT / AIG-105

1. AIG-117
2. Fixed Pressure Withdrawal Regulator
3. New

• compatible with 12 l, 34 l, 60 l, 112 l ALLCAN / Version A for 12 l , Version B for 34 l -112 l
• pressure gauge
• adjustable from 0,5 l/min - 1,5 l/min
• only available in nickel-plated brass, but suitable for H2S und SO2

DATENBLATT / AIG-105

1. Type B
2. Brass
3. Stainless Steel
4. New

• Compatible with 34 l, 60 l, 112 l ALLCAN / C10 threads

• Pressure indicator for monitoring the fill level

• Adjustable outlet pressure, 0-6 bar

The AIG-110 is designed to control the outlet pressure behind the regulator;

The outlet pressure can be continuously adjusted from 0-6 bar, thus offering an alternative to the pure flow (l/min) of other regulators.

1. Type B
2. Brass
3. Stainless Steel
4. New

The AIG-113 regulator, also known as the "trigger", is used to quickly release a small amount of gas. Pressing the trigger activates the regulator and delivers gas at a specific preset flow rate. The trigger regulator is a single stage flow control device.

All important data at a glance

• compatible with 34 l, 60 l, 112 l ALLCAN / C10 Gewinde
• Regulator opens and closes by the trigger
• Pressure display to check the filling level

1. Type B
2. Brass
3. Stainless Steel
4. New

The AIG-113 regulator, also known as the "trigger", is used to quickly release a small amount of gas. Pressing the trigger activates the regulator and delivers gas at a specific preset flow rate. The trigger regulator is a single stage flow control device.

All important data at a glance

• compatible with 34 l, 60 l, 112 l ALLCAN / C10 Gewinde
• Regulator opens and closes by the trigger
• Pressure display to check the filling level
